Basement Waterproofing Photo Album: Basement Waterproofing in Pleasant View, TN

This home in Pleasant View, Tennessee had a wet basement. It was partially finished and used for storage. Protecting that space, personal belongings, and family heirlooms the family wanted a reliable system. Tearing out walls, sanding and painting the block sounded like a lot of work for questionable results. Our inspector spoke with the home owner to determine the needs and expectations, took a look around to determine where the leak was coming from, then sat down to show all findings and recommended solutions. For this family a permanent solution was the way to go.

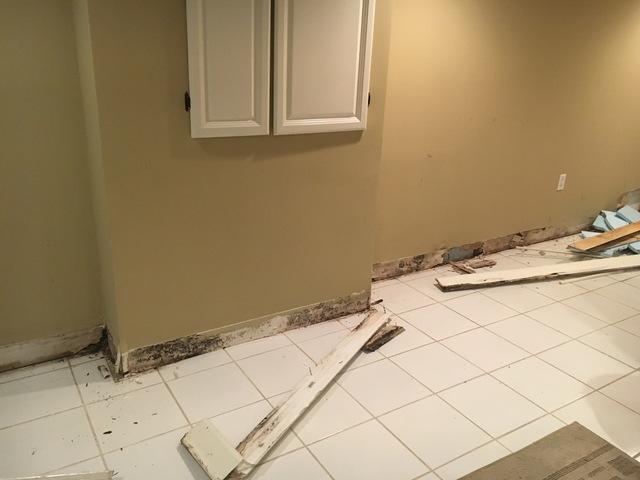

Mold behind the baseboards

Knowing water was coming in the home owner checked behind the baseboards and found mold, mildew, and wood rot. The mold traveled up the wall behind the drywall.

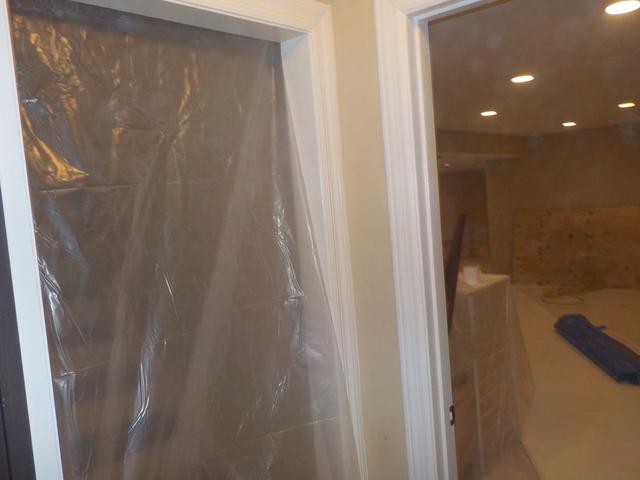

Plastic to help the dust

Crews do all they can to help cut back on the mess or inconveniences for the family.

Small Trench

A small trench is dug out along the base of the wall to prepare for a water collection and drainage line.

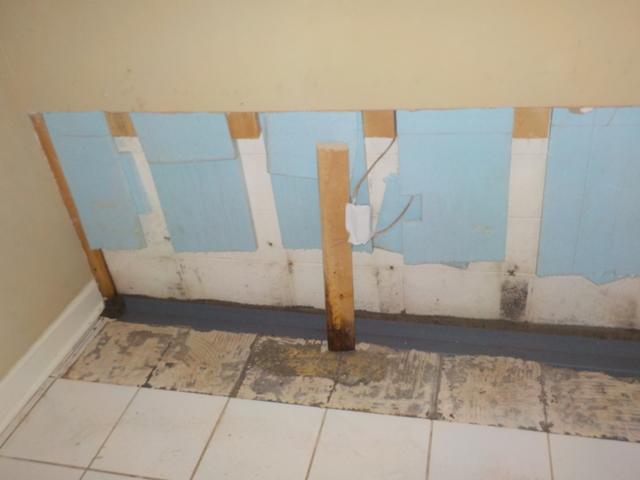

WaterGuard Install

Gavels provides a base in the trench to protect the drainage system from mud and debris. WaterGuard is an interior perimeter drainage system placed along the footing to collect and direct water to the sump pump.

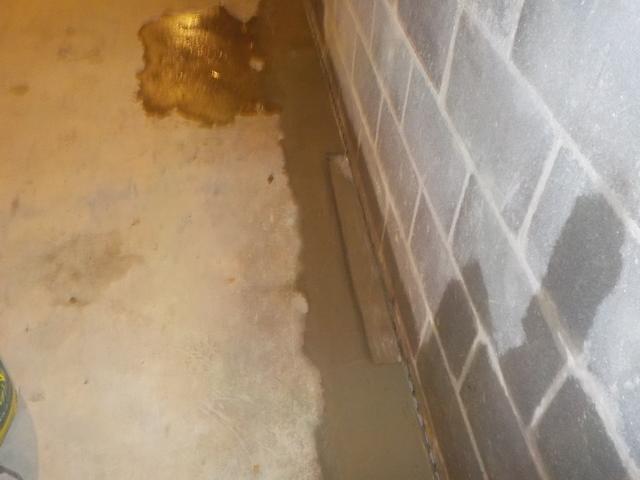

Smooth Cover

Once installed, concrete is poured and smoothed over for a finished look making the drainage system barely visible.

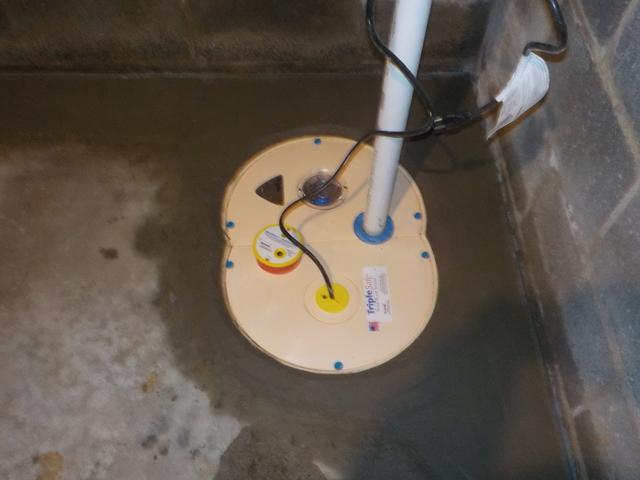

TipleSafe Sump System

This TripleSafe sump system houses a 1/3 HP cast iron Zoeller M53 sump pump with a mechanical float switch that sits on top of a clean pump stand. The liner is a below-grade perforated house for the the pumps, WaterWatch Alarms closed off with an airtight lid. The WaterWatch alarm prevents moisture form escaping from the sump pump liner and alerts the homeowner in the event of pump failure or power outage.

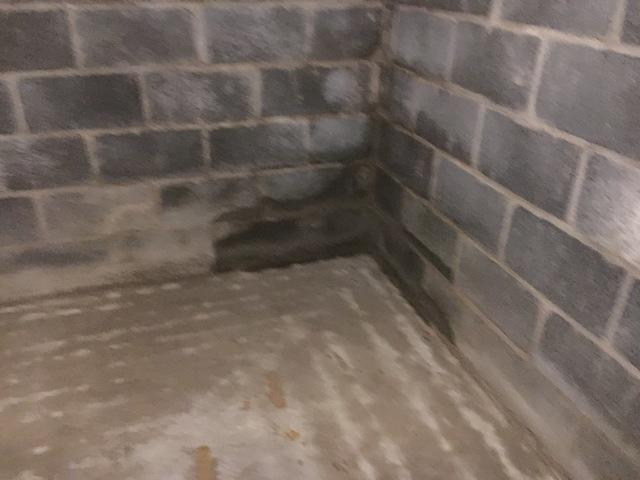

Wet Block

The darker block in the corner shows where the water is coming through and one of the areas the basement holds moisture.

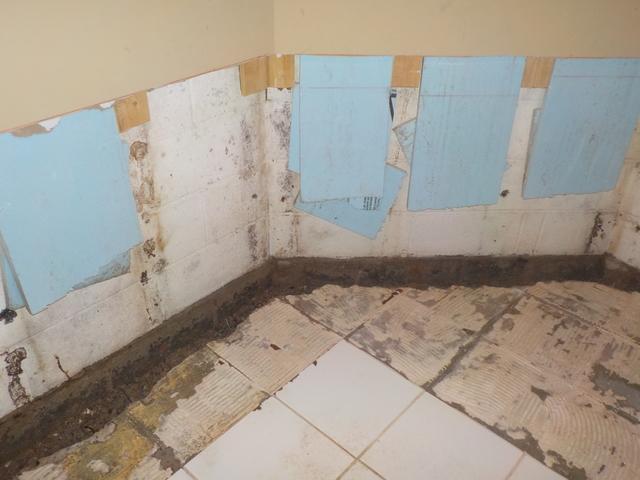

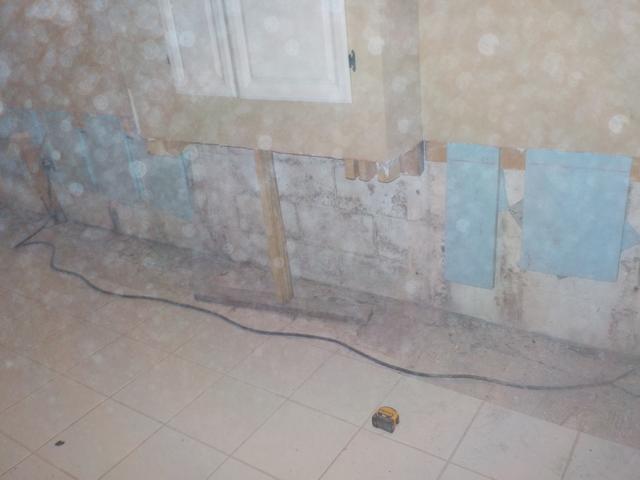

Wall Recovery

The lower portion of the wall is removed and discarded. Non-organic materials are healthier for basements. Non-porous materials will not absorb water, mold, or mildew.
