Basement Waterproofing Photo Album: Basement Waterproofing in Clarksville, TN

This customer in Clarksville, TN had an issue with water coming into her basement every time it rains. She ordered a basement waterproofing system installed in her basement. This included the installation of a WaterGuard XL sub-floor drainage system, a XL Vehicle TrenchDrain, a Drop Down Duct Multi Level Drainage System, IceGuard to prevent floods from clogged or frozen discharge line as well as a LawnScape Outlet to drain water from gutters or drains away from the structure. We installed the TripleSafe Complete pump system with twin liner, 1/3 HP cast-iron primary AC pump, 1/2 HP cast-iron AC back-up pump, and UltraSump battery back-up pumping system with charging/control box with alarm, and 120 amp sealed maintenance-free battery as well as CleanSpace wall liner on walls up to 8 feet high where indicated and we removed existing insulation in floor joists and hauled off for the customer.

Basement Waterproofing in Clarksville, TN

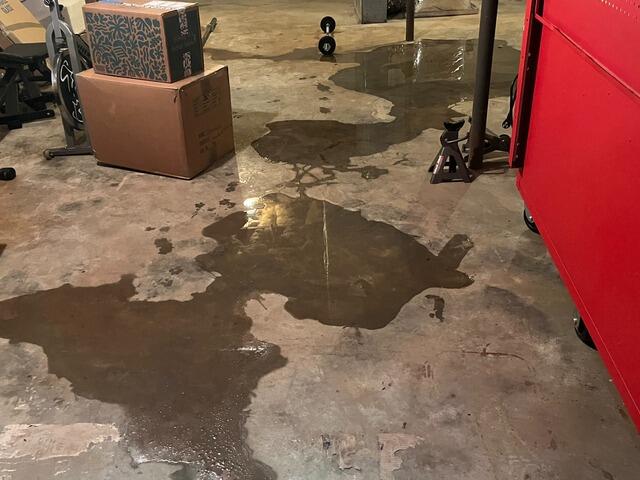

Water intrusion in the basement

Basement Waterproofing in Clarksville, TN

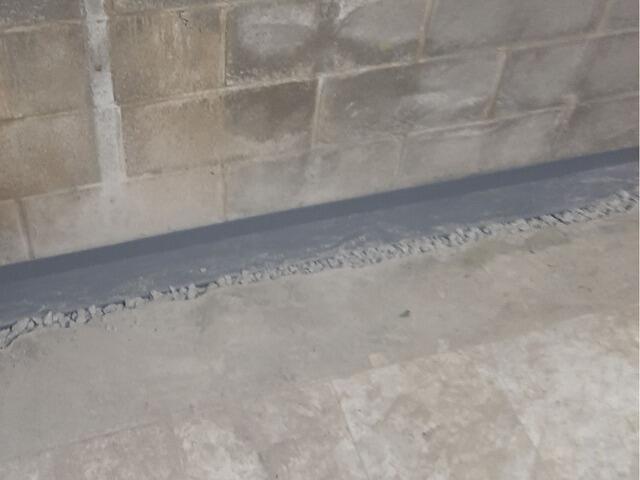

Drainage system installed and cemented over

Basement Waterproofing in Clarksville, TN

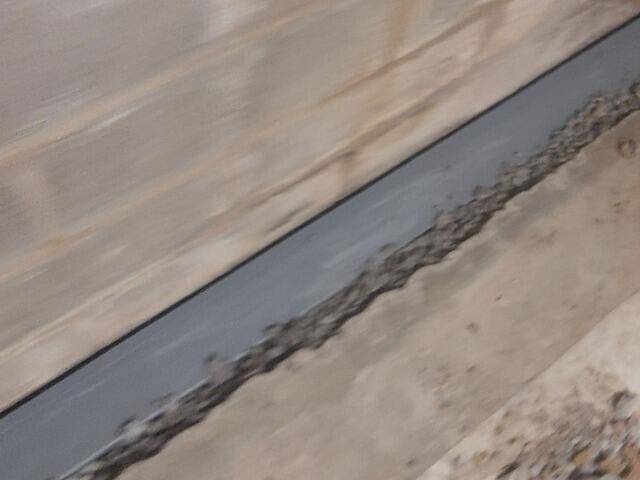

More of the drainage system

Basement Waterproofing in Clarksville, TN

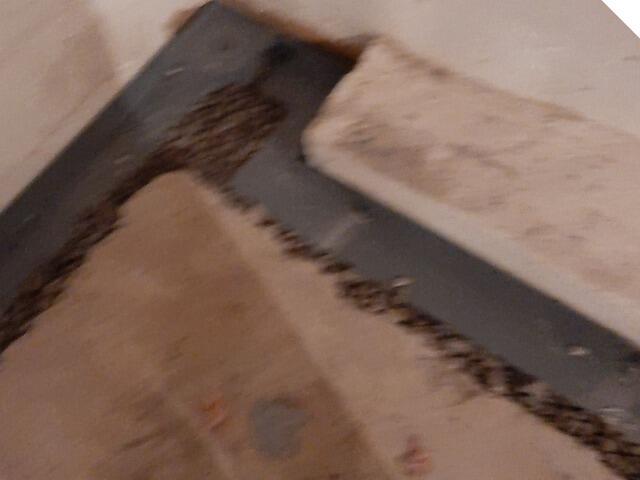

Drainage system around the corners

Basement Waterproofing in Clarksville, TN

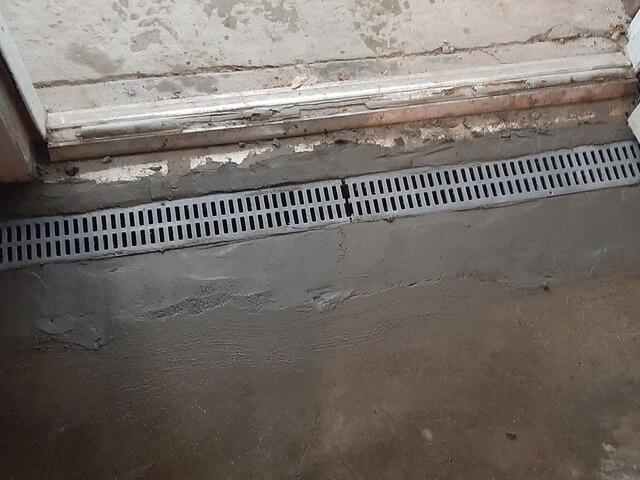

TrenchGuard installation in the doorway

Basement Waterproofing in Clarksville, TN

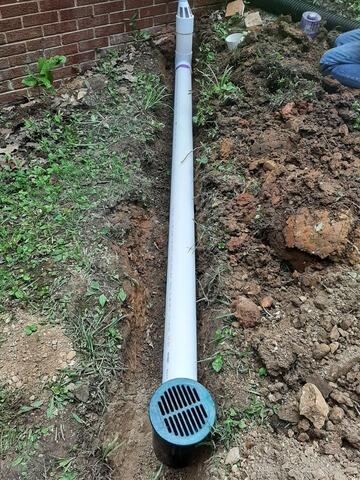

Drainage system out to the yard, this will be buried and flush with the ground

Basement Waterproofing in Clarksville, TN

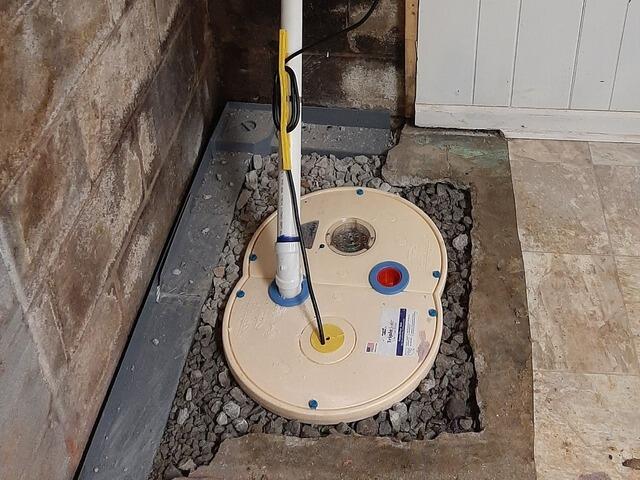

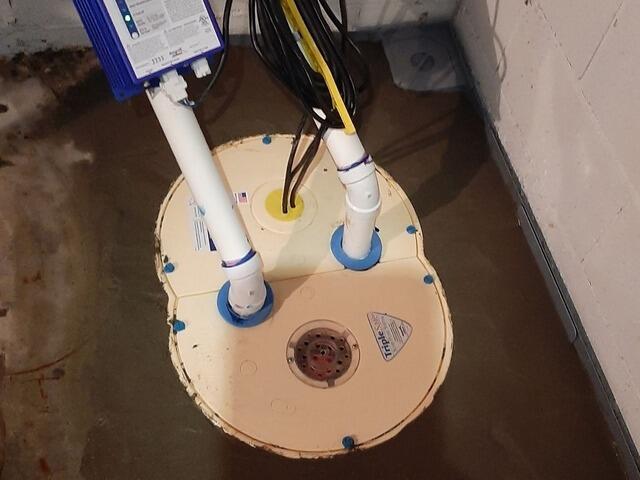

Our most reliable sump pump system, the TripleSafe™ Sump Pump System, provides three levels of protection for your basement and your peace of mind. For normal functioning, the TripleSafe™ has a powerful, cast-iron Zoeller® ⅓ horsepower sump pump set at the lowest level. For heavy volumes of water or in case of primary pump failure, a second, more powerful Zoeller® ½ hp pump set a bit higher in the liner will take over. In case of a power outage, our UltraSump® battery backup sump pump, set at the highest level, will pump 11,500 gallons or more on a fully charged battery!
