Foundation Repair Photo Album: Foundation Repair in Nashville TN

This poor house! A car ran in to the house at 40mph causing a great deal of damage to the home's foundation. Frontier and 2 other companies came out to do an inspection and give estimates. Rebuilding and reapairing the damage was a priority.

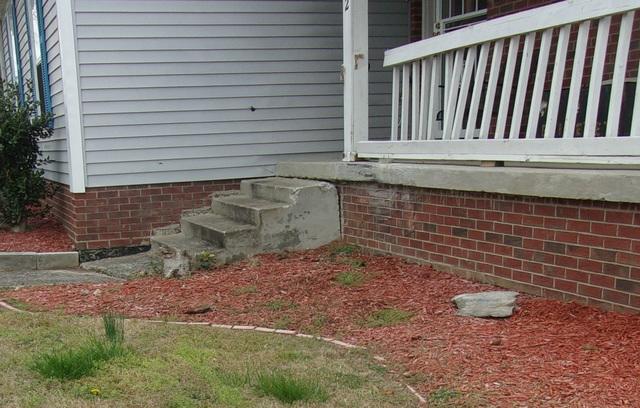

Point of impact

Here you can see where the vehicle hit the front of the house. Take a look at the steps and where the porch meets the siding. The impact cause significant movement.

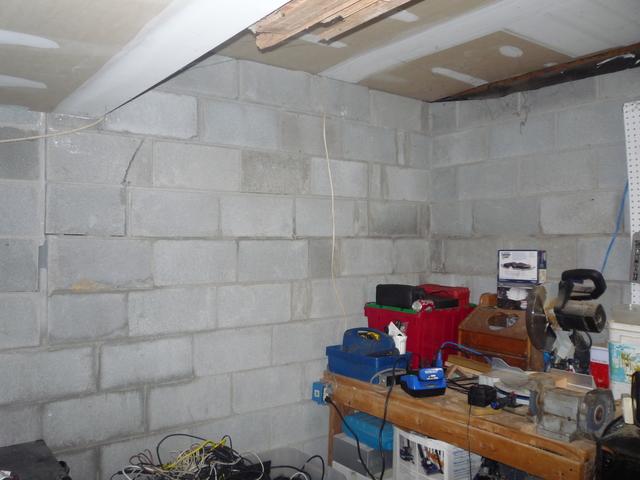

Foundation Wall Danger

The damage is more than meets the eye from the front of the house. This foundation wall has been severely compromised and needs to be secured before it buckles under the weight of the home above.

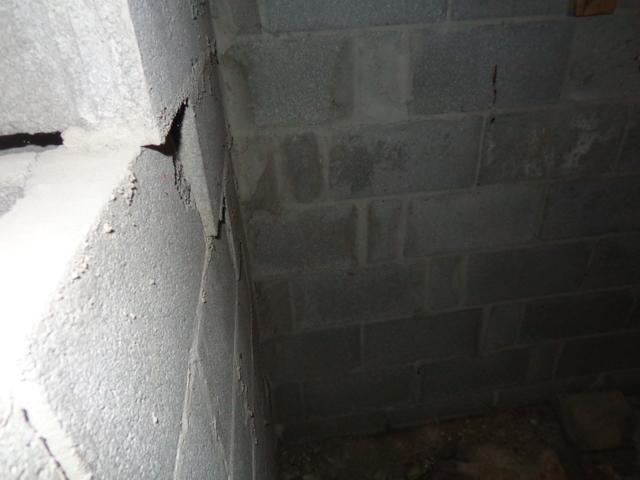

Blocks have shifted

The block wall foundation is no longer secure. The force cause the real damage below the porch.

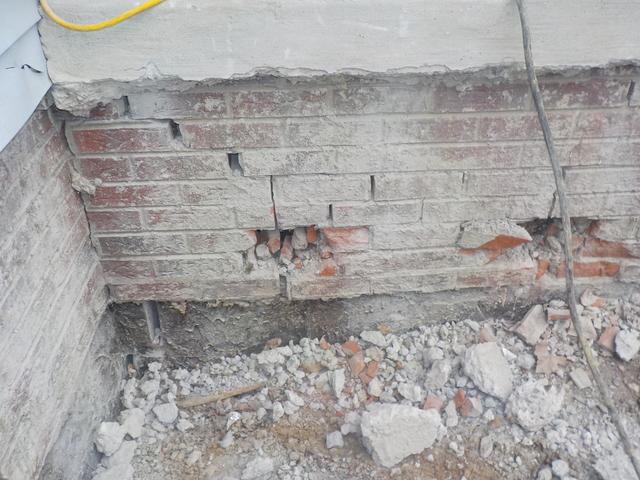

Behind the steps

The steps were removed to asses the severity of the damage to the foundation. It is obvious now the damage was serious and needed immediate attention.

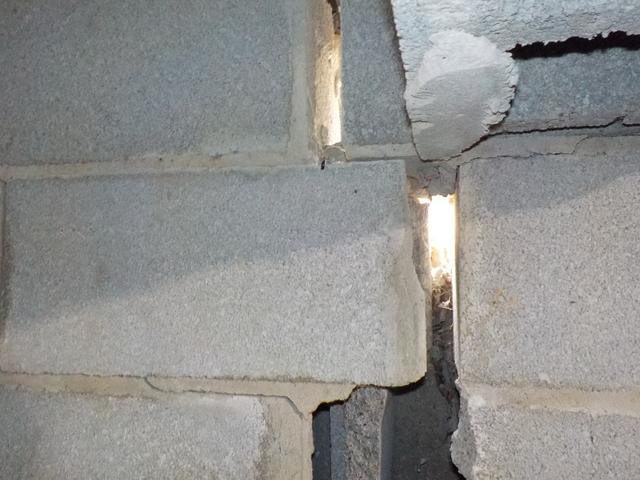

Seeing Daylight

It is never good when you can see daylight through the foundation wall. The home was shored up for safety until work was complete.

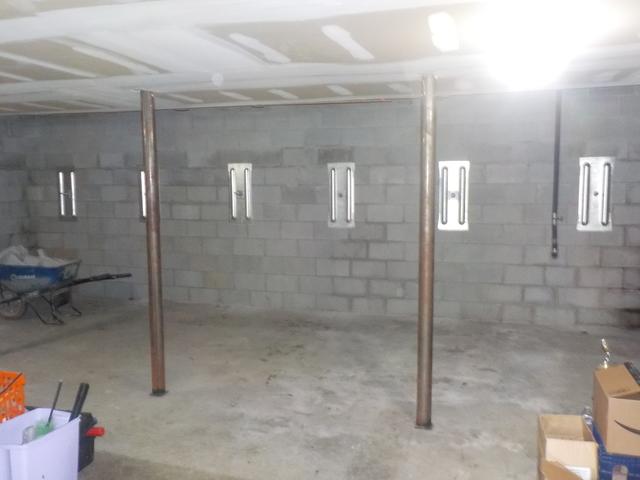

GeoLock Wall Anchors

The impact had caused a couple inches shift in multiple places of the foundation. Wall anchors provide the needed resistance to protect the wall from further failure.

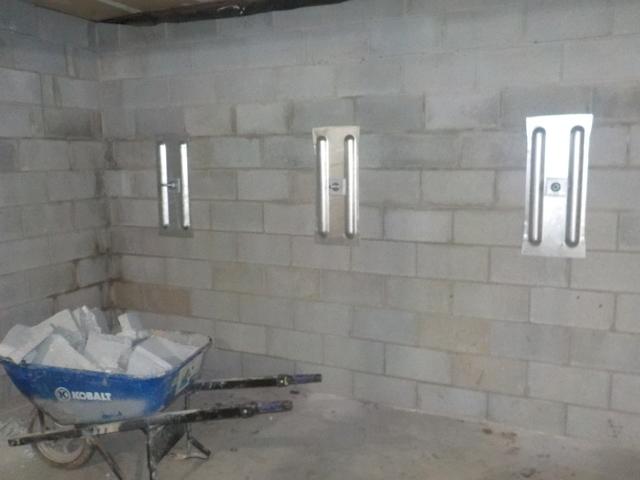

Wall Recovery

These steel plates are connected with a steel rod to similar plates buried in the ground. The tension is adjusted to permanently straighten and stabilize the foundation.
