Foundation Repair Photo Album: Foundation Settlement Repair in Madison, AL

This customer called Frontier when she noticed cracks and separation on her home's exterior bricks. She also noticed in the same area, the window was separating from the structure. This is a clear indication that this area of the home was sinking and there was a foundation issue that needed to be addressed before it could get any worse. We were able to come out and install Push Piers on the side of the home that was sinking. Foundation Supportworks Push Piers are made of steel and are driven deep into the soil beneath a foundation to solve settlement problems. They can be installed inside or outside your foundation walls and are not visible once the repair is complete. Push piers not only stop settlement but lift the foundation back to its original position, closing cracks and improving window and door operation.

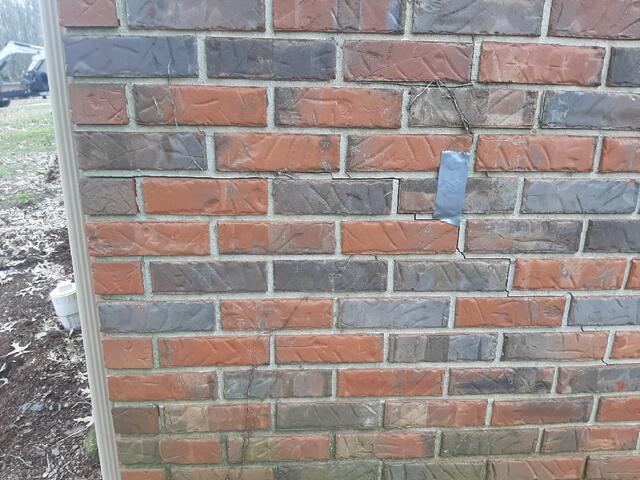

Cracking on Exterior of Home

When the soils underneath your foundation fail to support the weight of your home, the foundation will begin to settle unevenly, and cracks will appear.

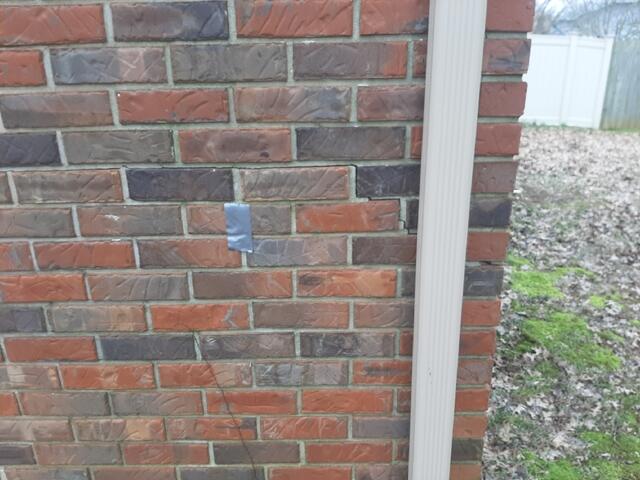

Exterior Cracks in Brick on Side of Home

As vertical cracks form and the wall or corner of the house begins to rotate, you will typically see cracks that are wider at the top or bottom.

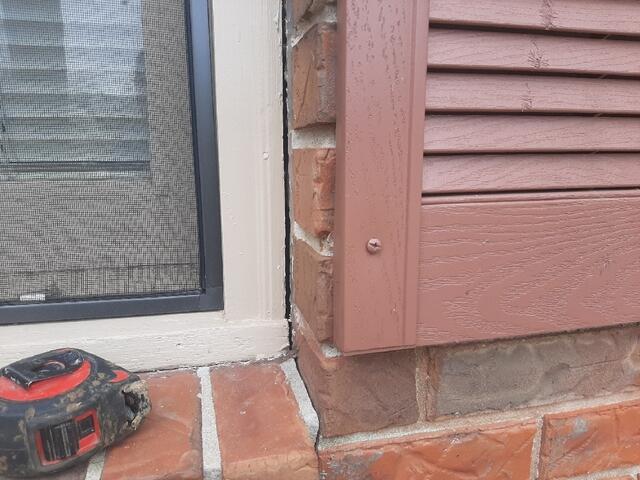

Separation of Window From Structure

Foundation cracks that are caused by settlement are very serious, and they will only get worse over time as the home continues to move. If you are concerned that your foundation may be cracking due to settlement issues, it's best to consult a professional right away.

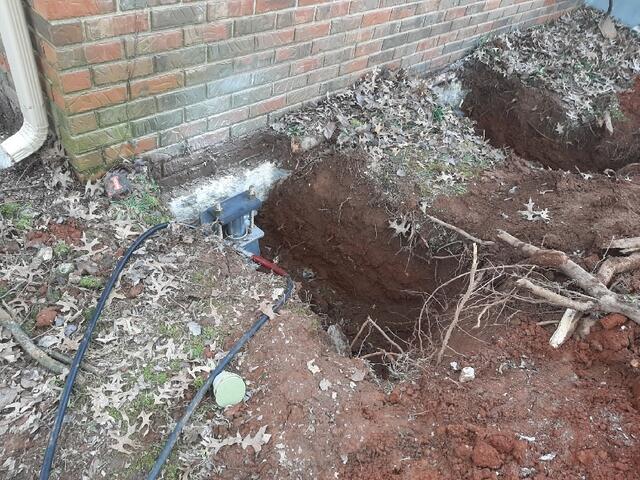

Push Pier Installation Process

To install a push pier system, soil is first removed to expose the foundation footing where the pier will be driven. A heavy-duty steel bracket is then installed below the footing.

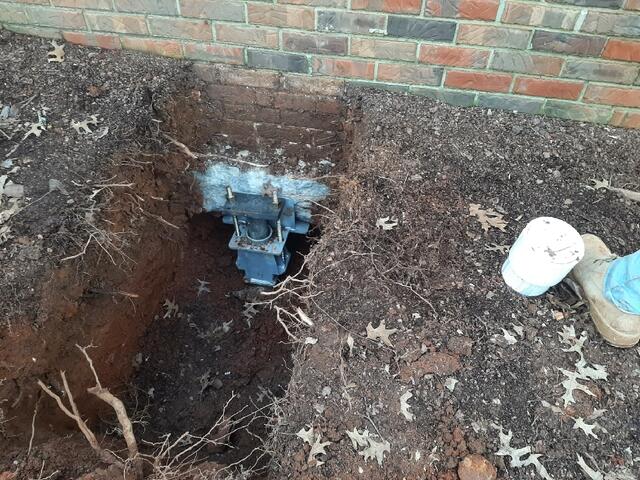

Heavy-duty Steel Bracket

A heavy-duty steel bracket is then installed below the footing.

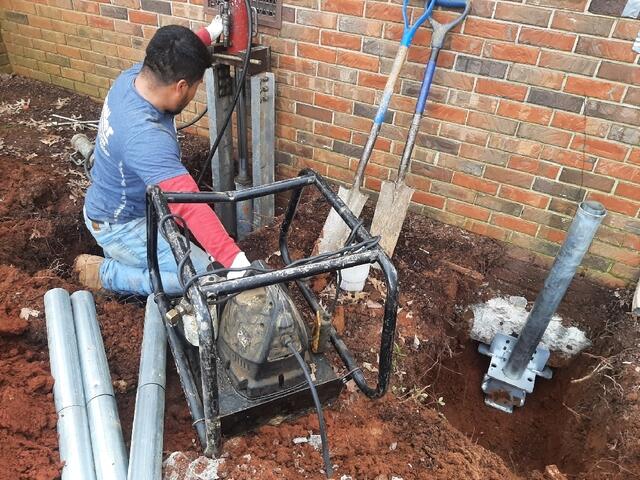

Pier being Hydraulically Driven

Next, rugged, interlocking steel pier sections are hydraulically driven through the bracket until bedrock or stable soil is reached. The weight of the home is then transferred through the piers to this load-bearing soil.

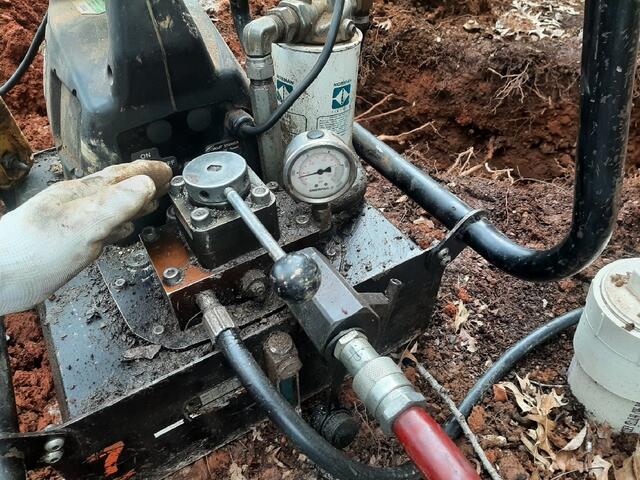

Push Pier Installation

Hydraulic machine used to drive piers down

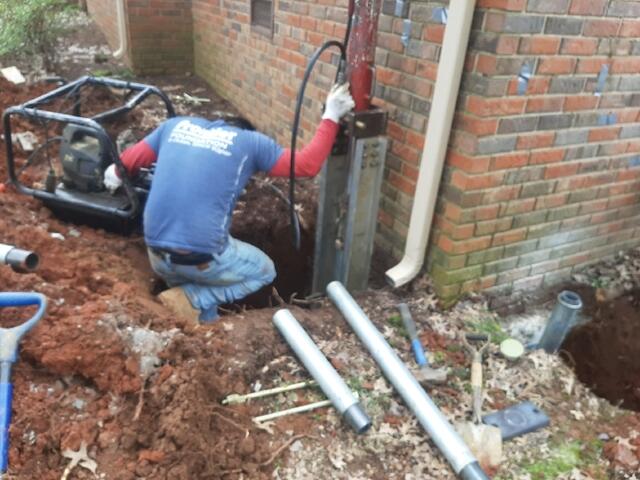

Process of Lifting Foundation

Once this has been completed, your foundation contractors may attempt to lift the foundation, elevating the settled foundation back to its original position.

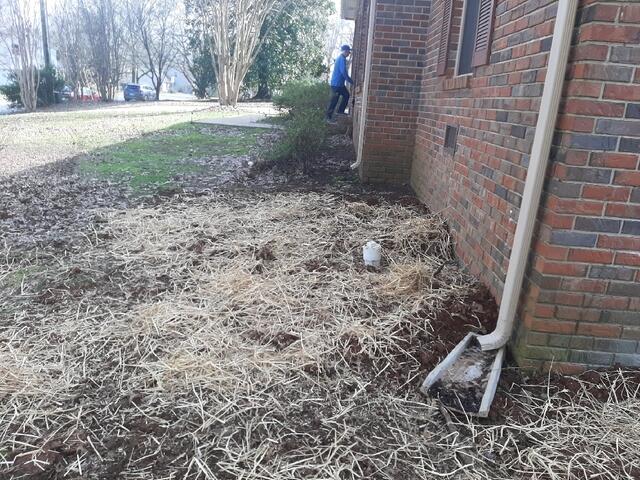

Project Complete

Once the homeowner and installing contractor are satisfied with the stabilization or amount of lift, the soil can be backfilled. The home is now permanently stabilized in its new position.
